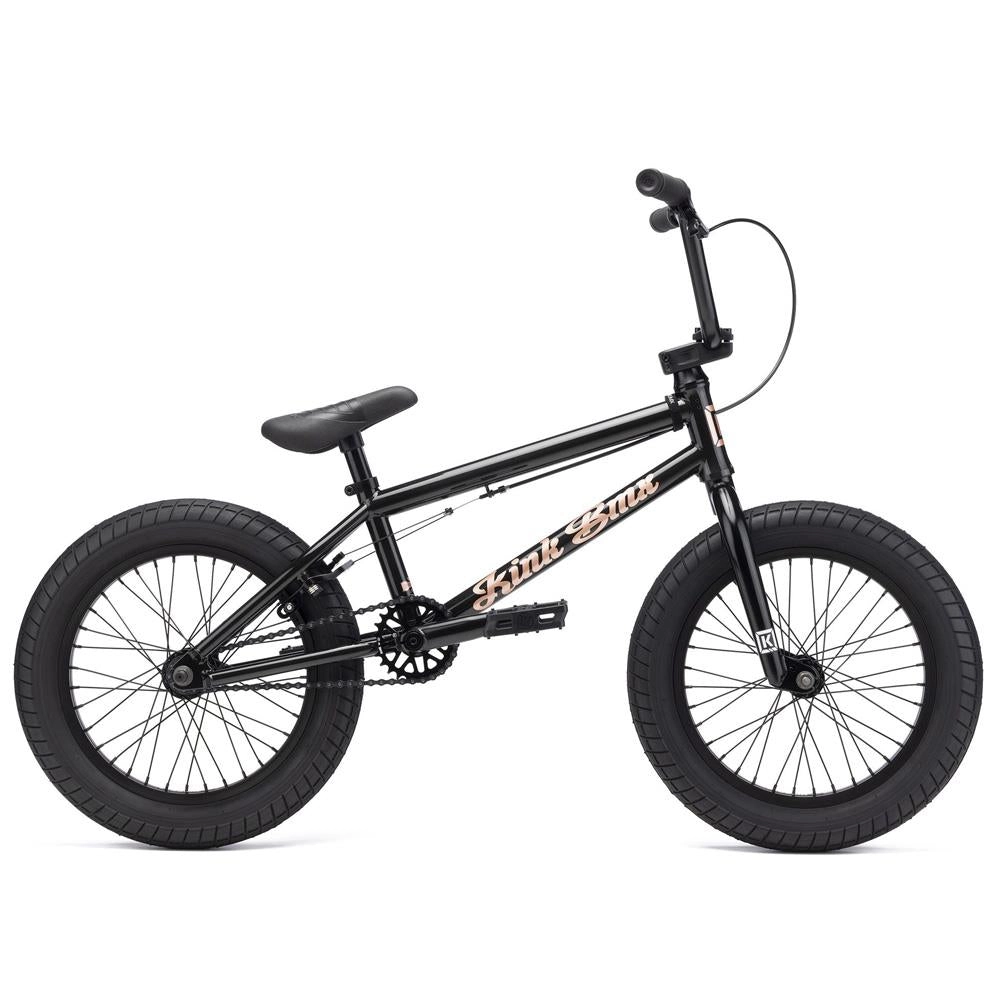

The Kink Carve 16” ensures riders of every age can not only find a bike that fits them but can also hold up to some real BMX riding.
Kids are getting serious about BMX at younger and younger ages, and Kink are here for it making sure that every age and style is covered. The properly proportioned geometry and components on the Carve create a modern, yet comfortable ride, suited for the rider who isn’t ready for the bump up to a larger 18” bike yet.
The Carve is built to take on the streets and the park thanks to its full Hi-Ten steel frame, chromoly steerer with tapered steel fork legs and Hi-Ten steel bars. An unsealed front hub and semi-sealed rear cassette hub are both paired with Mission X7 rims and Tracker tires that rolls smooth, with 2.4" wide tires giving all the grip.
Kink have utilised a load of Mission parts from the Cypress seat, Rank sprocket, 410 chain, Hemlock pedals and the Cease V2 brake setup to give the carve a really reliable feel.
###section###
Product Specs
- FRAME MATERIAL: 100% Hi-Ten Steel
- WHEEL SIZE: 16"
- TOP TUBE LENGTH: 16.5"
- CHAIN STAY LENGTH: 11.25"
- HEADTUBE ANGLE: 74.5°
- SEAT TUBE ANGLE:
- FORKS: Chromoly Steerer Tube and Tapered Hi-Ten Legs
- BARS:
- MATERIAL: Hi-Ten
- TYPE: 2-Piece
- RISE: 7" Rise
- WIDTH: - STEM: Alloy Top Load
- HEADSET: Integrated
- BRAKE MOUNTS: Welded U-Brake
- BRAKES: U-Brake
- FRONT HUB: Loose Ball
- FRONT RIM: Single Wall
- REAR HUB: 14mm Sealed Cassette
- REAR RIM: Single Wall
- TYRES: 2.4"
- SPROCKET: 25t
- CRANKS:
- MATERIAL: Chromoly
- TYPE: 3-Piece
- ARM LENGTH: 140mm - BB: 19mm Mid
- PEDALS: Plastic
- SEAT: Combo Seat/Post
- GEARING: 25/9
- WEIGHT: 22.1lbs (10kg)
###section###
Product Highlights
- Smaller 16" Wheels - The Perfect fit for for 5-8 years olds (3ft - 3ft 6 / 90cm - 105cm)
- Specifically designed for the smaller rider, just starting out in BMX
- Built strong and lightweight
- Semi sealed rear hub
- U-brake system on welded mounts
